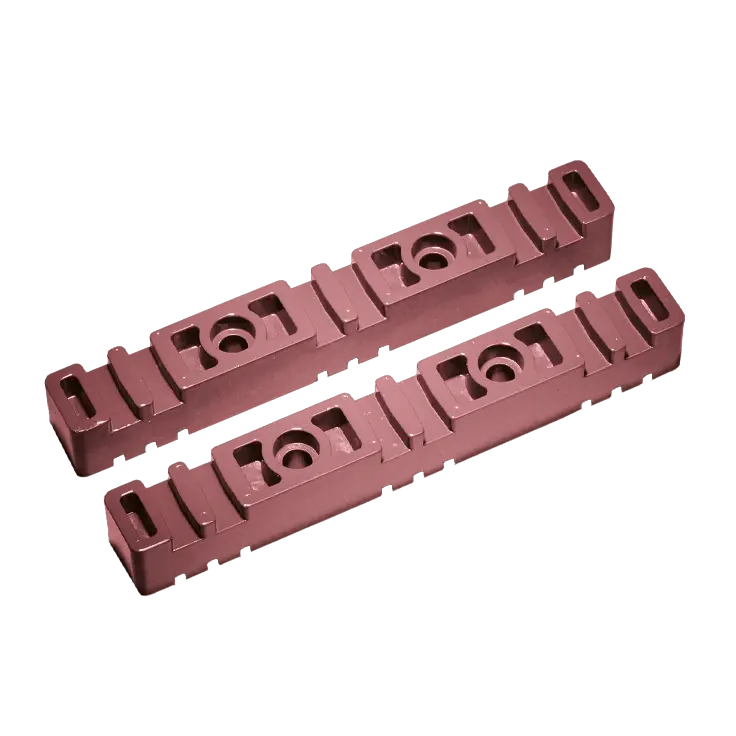

Bus bar supports

Bus bar holders Type 3X

  • for vertical bus bars
  • Phase distance: 75 oder 105 mm
  • M12 fixing screws to be used
  • Distance holders upon request
  • Glassfiber reinforced Polyester (BMC)
  • Flammability: UL94-VO
  • Standard color: white

Bus bar holders Type BT 100

  • Distance between phases 100 mm
  • Two fixing holes for M12 rods
  • Tightening torque 20 Nm

Do you have specific requirements?
We are excited to fulfill your individual wishes. Contact us for customized solutions!

Technical data PDF Get in touch

Do you have questions about our product, would you like personal advice, or do you want to place an order? Our team is happy to assist you with help and guidance! Quality and expertise from a single source!

Suitable for this

Traforäder

Transformer Wheels

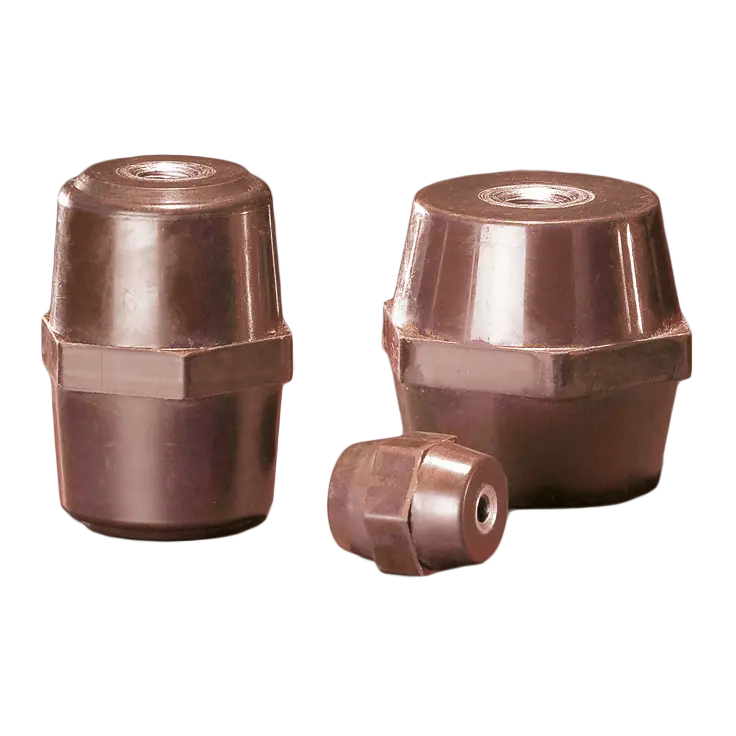

Niederspannungsstützer Typ SK

Standoff insulators Type SK

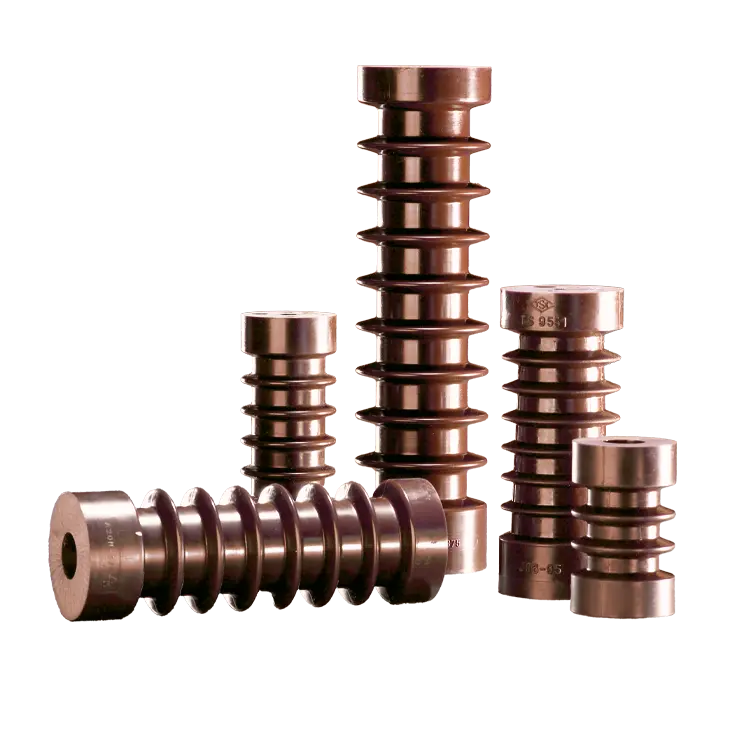

Mittelspannungsstützer

Medium-Voltage insulators
Stützerstromwandler AB12

Support Current Transformers Type AB12, AB24
Schraub- und Klemmdurchführungen

Screwable and Clamp bushings

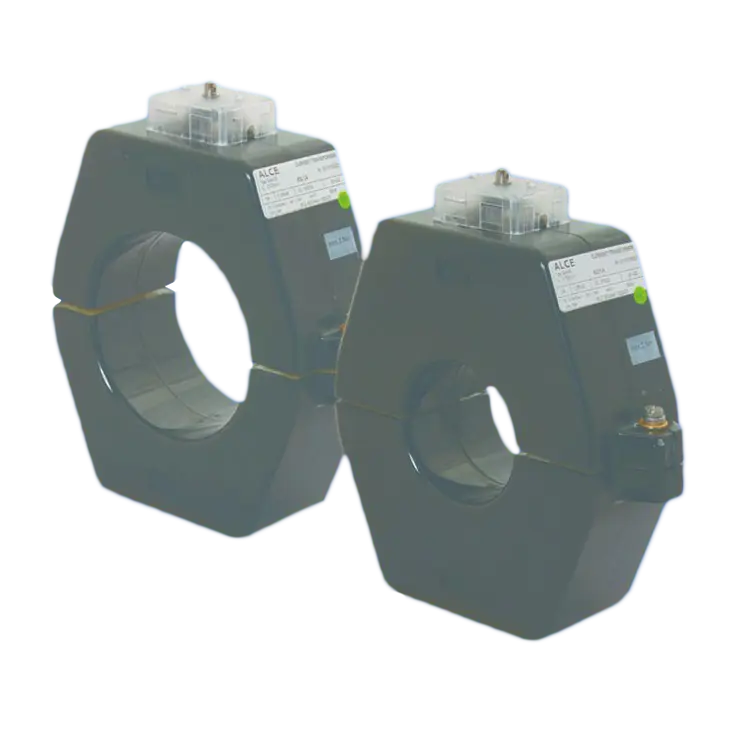

Kabelumbauwandler 2-teilig
