Accessories for Oil Transformers

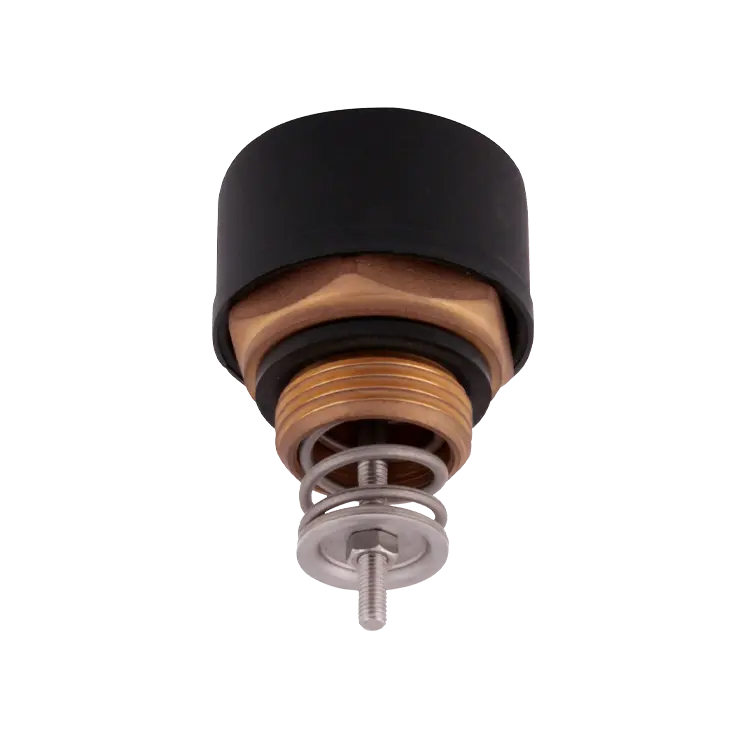

Pressure Safety Valves Type T-10
The T-10 pressure safety valve is employed as a safety element in distribution transformers of low ratings. In the event of an explosion-type pressure increase of the transformer tank, the excess pressure must be relieved immediately to avoid damage to the tank. These types are suitable for hermetically sealed transformers.
- Type T-10 long version - R1” / R 1 ½” / R 2”
- Type T-10 short version - R1” / R 1 ½” / R 2”
Do you have questions about our product, would you like personal advice, or do you want to place an order? Our team is happy to assist you with help and guidance! Quality and expertise from a single source!
The T-10 pressure safety valve consists of a brass cap, a conical valve body, a rubber seal between the cap and body and a coil spring holding the whole system. As soon as relief pressure is reached, the valve cap lifts off and the excess pressure is relieved. The valve then shuts itself down again automatically. The valve can be infinitely set from 0.2 to 0.7 bar. The valve can also be equipped with a specially manufactured protective cap to prevent unauthorized operation of the valve.
Suitable for this
